INDICATION

Rhizarthrosis

SPHERICAL CUP

  • 2 cup sizes (Ø 9 mm and 10 mm)
  • 5 anti-rotation fins
  • Spiked crown for stability
  • Material : stainless steel
  • Dual coating : porous titanium + HA

CONICAL CUP

  • 2 cup sizes (Ø 9 mm and 10 mm)
  • Material : stainless steel
  • Dual coating : porous titanium + HA

LINER

  • Liner material : Highly Crosslinked PE
  • Only one pre-assembled insert size on each neck
  • Dual mobility retentive insert
  • Internal diameter 4 mm, external diameter 7 mm

NECK

  • 3 heights: 6, 8 and 10 mm
  • 2 types of neck: straight and 15° offset
  • Head diameter 4 mm
  • Neck material : Stainless Steel

STEM

  • 6 stem models
  • Anatomical trilobe section
  • Material : Titanium
  • Dual coating / Porous titanium + HA

TECHNICAL DATA SHEET

DR-3A-042.01_En TDS PE Touch_print_recto

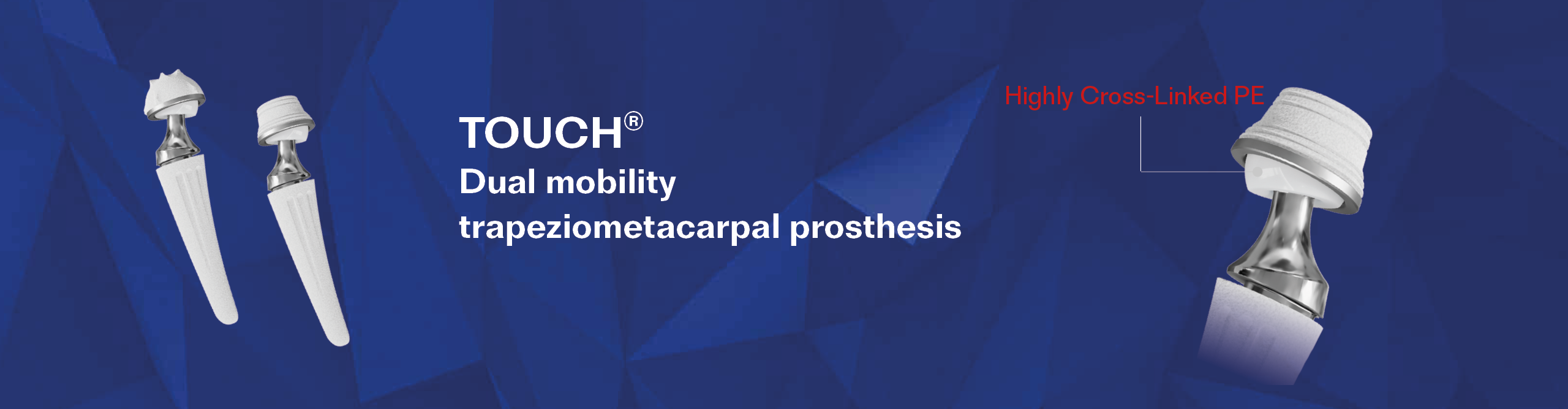

THE + TOUCH®

  • 1st prosthesis on the market to propose a spherical and conical cup
  • Modularity: 144 possible combinations to fit as close to the patient’s anatomy
  • Complete instrument set including orthopaedic standard instrumentation
